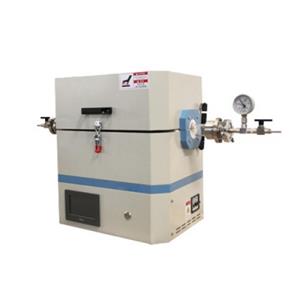

Controlled atmosphere tubular resistance furnace

Product introduction

WEF series laboratory high temperature furnace has complete performance design, safety and practicality to achieve the best results.

◆The maximum temperature is 1000°C, 1300°C.

◆Using vacuum forming process technology, the electric furnace wire is embedded in the inner surface of the ceramic fiber furnace, and the inner tank of the furnace is formed at one time to prevent pollution by volatiles, and other thermal insulation design, the outer surface temperature of the furnace shell is low.

◆The electric furnace wire is set around the furnace, and other furnace wire surface treatment anti-corrosion technology.

◆The furnace tube adopts alumina furnace tube (1000 °C), and corundum furnace tube can be selected.

◆Thyristor control, PID parameter self-tuning function, manual/automatic interference-free switching function, programmable 30 time periods, can meet the requirements of continuous constant temperature and temperature control.

◆Optional door opening automatic power off function, with overtemperature alarm function, with built-in parameter password control function.

◆ Vacuum atmosphere type adopts stainless steel sealing kit and * corundum tube, good sealing effect, vacuum degree -0.098MP a.

◆ The heating rate is 0-30°C/min, the heating speed is fast, the energy consumption of the empty furnace is small, and the energy saving is more than 50%.

◆High temperature control accuracy, display accuracy ± 1°C; The punching temperature value is less than 3 °C, and the temperature uniformity is ± 6 °C.

◆1300°C and 1400°C tube furnaces use silicon carbon rod heating and 99 corundum tube.

◆A variety of safety * protection design, good safety * performance, long service life.

　　Additional configuration

　　◆Optional ordinary corundum tube and 99 corundum tube  ◆Optional glass rotameter and gas mass flowmeter

       ◆Optional 2XZ-1 rotary vane vacuum pump                          ◆Optional installation, commissioning, training.

　　Technical parameters
